Ladder Platforms & Ladders
Safe, stable access in and out of trenches is critical on active sites. Guardian ladder platforms, extension ladders and crossover walkways are designed to provide secure entry, exit and over-trench access, reducing the risk of slips and falls. Lightweight construction and non-slip surfaces allow for fast installation while maintaining strong, reliable performance in demanding conditions.Our Range

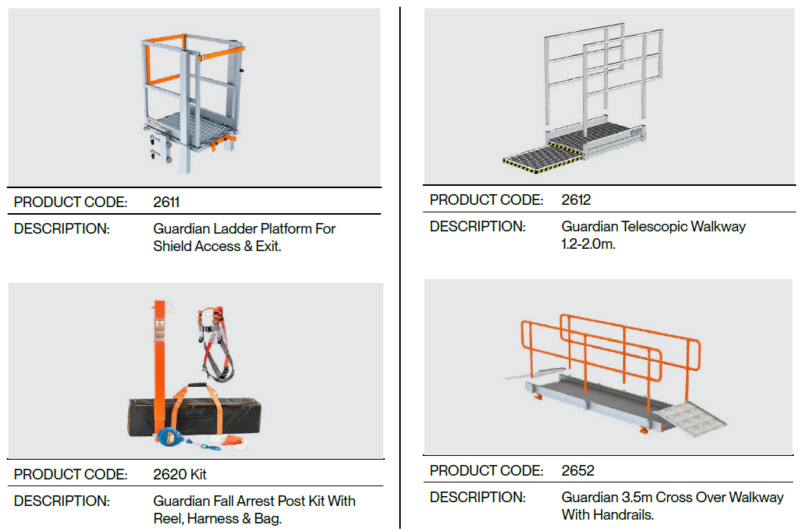

| PRODUCT CODE: | 2611 |

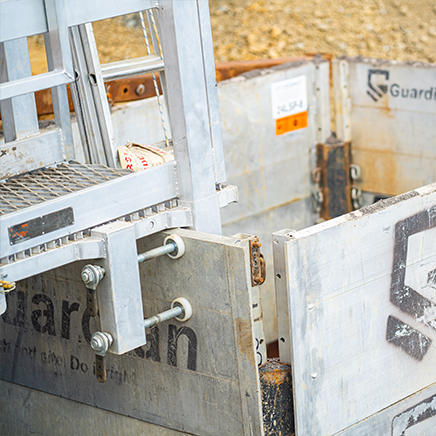

| DESCRIPTION: | Guardian Ladder Platform For Shield Access & Exit. |
| PRODUCT CODE: | 2612 |
| DESCRIPTION: | Guardian Telescopic Walkway 1.2-2.0m. |
| PRODUCT CODE: | 2620 Kit |
| DESCRIPTION: | Guardian Fall Arrest Post Kit With Reel, & Bag. |
| PRODUCT CODE: | 2652 |
| DESCRIPTION: | Guardian 3.5m Cross Over Walkway With Handrails. |

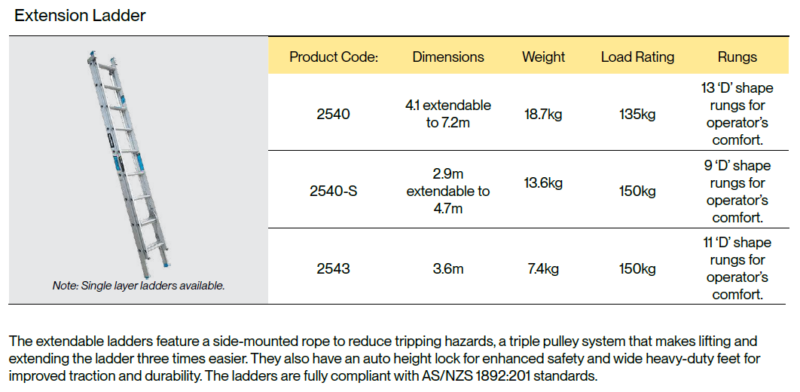

Extension Ladder
Note: Single layer ladders available. |
Product Code: | Dimensions | Weight | Load Rating | Rungs |
|---|---|---|---|---|---|
| 2540 | 4.1 extendable to 7.2m | 18.7kg | 135kg | 13 'D' shape rungs for operator’s comfort. | |
| 2540-S | 2.9m extendable to 4.7m | 13.6kg | 150kg | 9 'D' shape rungs for operator’s comfort. | |
| 2543 | 3.6m | 7.4kg | 150kg | 11 'D' shape rungs for operator’s comfort. |
The extendable ladders feature a side-mounted rope to reduce tripping hazards, a triple pulley system that makes lifting and extending the ladder three times easier. They also have an auto height lock for enhanced safety and wide heavy-duty feet for improved traction and durability. The ladders are fully compliant with AS/NZS 1892:201 standards.

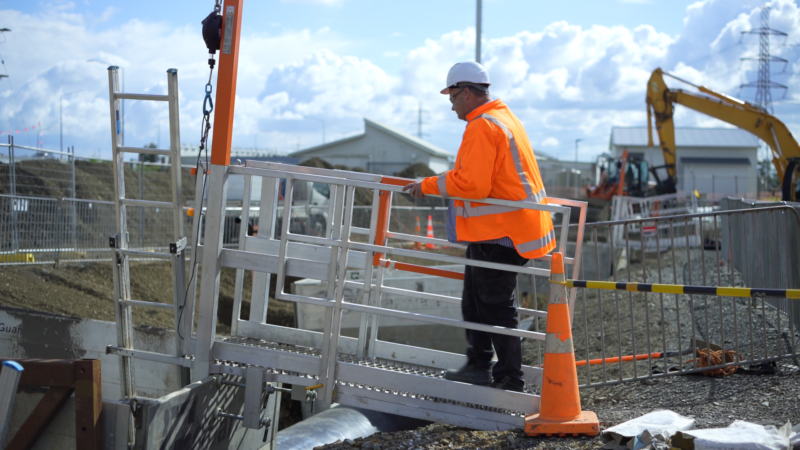

Protection in Action

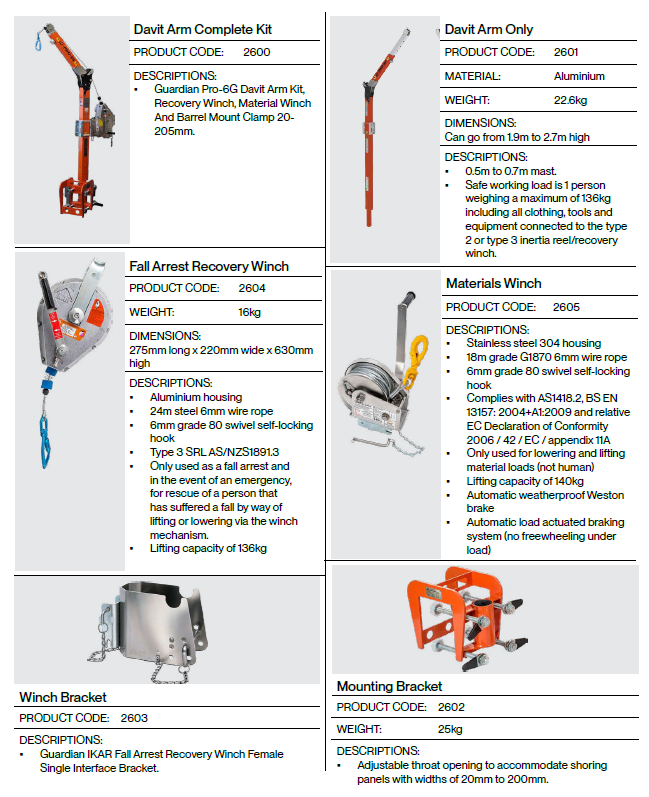

Davit Arms & Winches
Guardian davit arms and winches provide a compliant solution for fall arrest, rescue and controlled lifting in trench and confined space environments. Designed for fast setup on site, these systems allow safe lowering and recovery of personnel, as well as controlled lifting of materials. Corrosion-resistant construction and adjustable configurations make them suitable for repeated use across multiple sites.Our Range
- Guardian Pro-6G Davit Arm Kit, Recovery Winch, Material Winch And Barrel Mount Clamp 20-205mm.
- 0.5m to 0.7m mast.
- Safe working load is 1 person weighing a maximum of 136kg including all clothing, tools and equipment connected to the type 2 or type 3 inertia reel/recovery winch.
- Aluminium housing
- 24m steel 6mm wire rope
- 6mm grade 80 swivel self-locking hook
- Type 3 SRL AS/NZS1891.3
- Only used as a fall arrest and in the event of an emergency, for rescue of a person that has suffered a fall by way of lifting or lowering via the winch mechanism.
- Lifting capacity of 136kg
- Stainless steel 304 housing
- 16m grade C1870 6mm wire rope
- 6mm grade 80 swivel self-locking hook
- Complies with AS1418.2, BS EN 13157:2004+A1:2009 and relative EC Declaration of Conformity 2006/42/EC / appendix 14
- Only used for lowering and lifting material loads (not human)
- Lifting capacity of 140kg
- Automatic weatherproof Weston brake
- Automatic load actuated braking system (no freewheeling under load)
- Adjustable throat opening to accommodate shoring panels with widths of 20mm to 200mm.

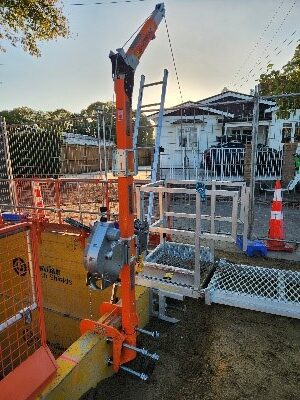

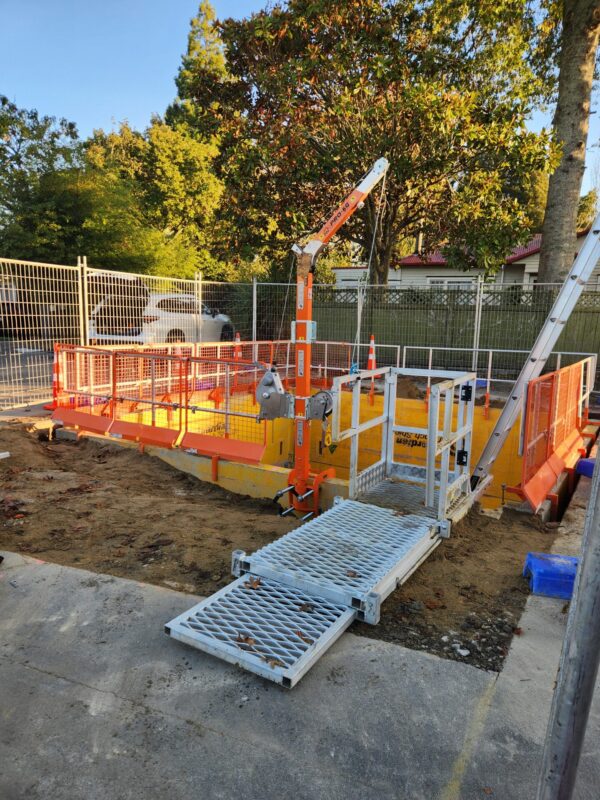

Protection in Action
Handrails
Guardian handrail systems create a clear physical barrier around open trenches, improving edge protection and site safety. Built from lightweight yet robust materials, the handrails attach directly to trench shields for fast installation. Multiple length options allow handrails to be configured to suit different trench sizes while meeting site safety requirements.Our Range
| Product Code | Dimensions | Material | Description |
|---|---|---|---|
| 2485-2 | 2.0m | Aluminium | Handrail set 2 x Feet To Suit 50-200mm Panels |
| 2485-24 | 2.4m | Aluminium | |
| 2485-3 | 3.0m | Aluminium | Handrail set 3 x Feet To Suit 50-200mm Panels |
| 2485-4 | 4.0m | Aluminium | |
| 2488 | 1.0m | Steel | Mesh Barrier to hook over handrail |
| 2491 | Fits 50mm to 200mm Panels | Steel with rubber pad | Handrail foot clamp only |

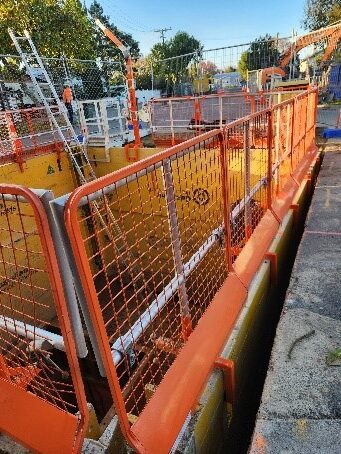

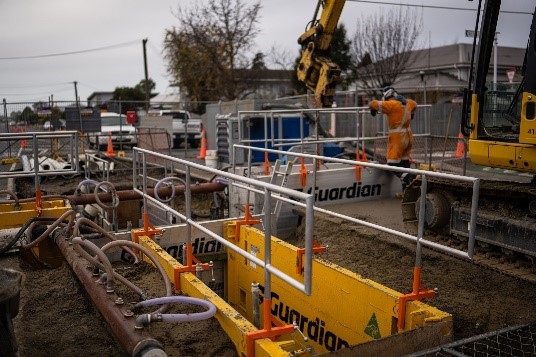

Protection in Action
Why choose Guardian trench shields?
Lightweight without compromise
Complete shield setup. Small excavators can lift and position shields using inbuilt lifting points. This cuts machinery costs and makes shields accessible for restricted sites.
Built for New Zealand conditions
Aluminium doesn’t rust. In wet, muddy trench work, that longevity matters. Our shields handle New Zealand’s diverse soil types — from sandy coastal ground to heavy clay — without the corrosion issues affecting steel alternatives.
Flexible for real work
Most shields have multiple strut points, meaning you’re not locked into one position when services are in the way. We have many different-sized struts, including adjustable struts to accommodate different trench widths.
Fast to deploy and move
Shields can be assembled or dismantled in minutes. Move quickly around busy sites or transport between jobs without specialised equipment.
Compliance and certification
Every Guardian shield meets or exceeds at least one of the following standards:
- New Zealand: AS 4744.1-2000
- Australia: AS 4744.1-2000
- United States: OSHA Sub Part P
- Britain & Europe: BS EN 13331.1 and 13331.2
Each shield carries an identification plate showing standards compliance. Certifications and Safe Use Manuals provided to support Health & Safety requirements and WorkSafe inspections. Reference guides on every shield show safe strut positioning.
Technical support
We understand site pressures. Projects run tight, ground conditions change, and you’re responsible for getting people home safe. We provide:
- On-site product demonstrations
- Crew training on proper installation and use
- Technical compliance advice
- Documentation for WorkSafe requirements
- Custom sizing for non-standard requirements
What do you need?
Whether you’re looking for a specific solution or an ongoing safety partner, we’re ready to talk.
